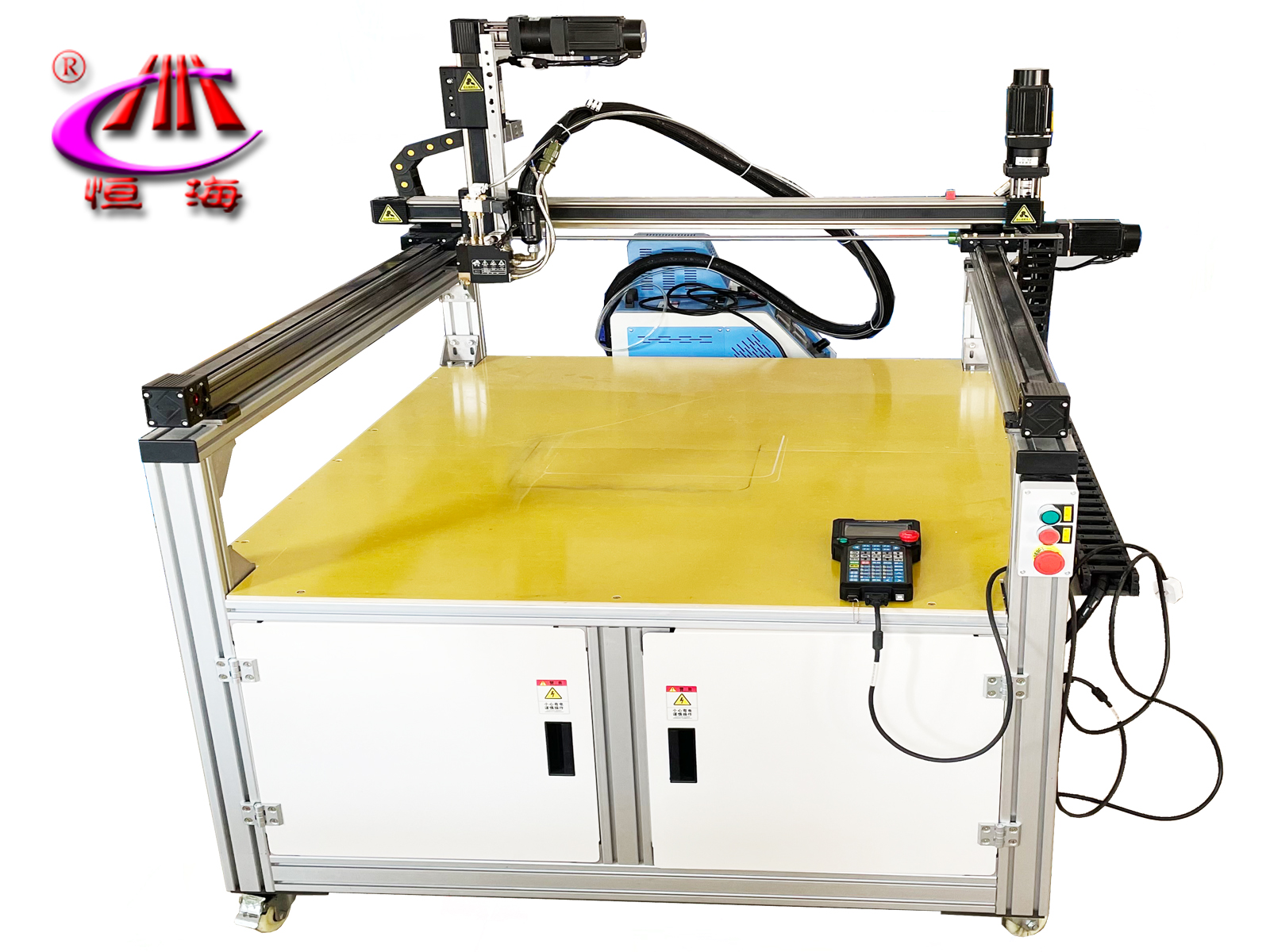

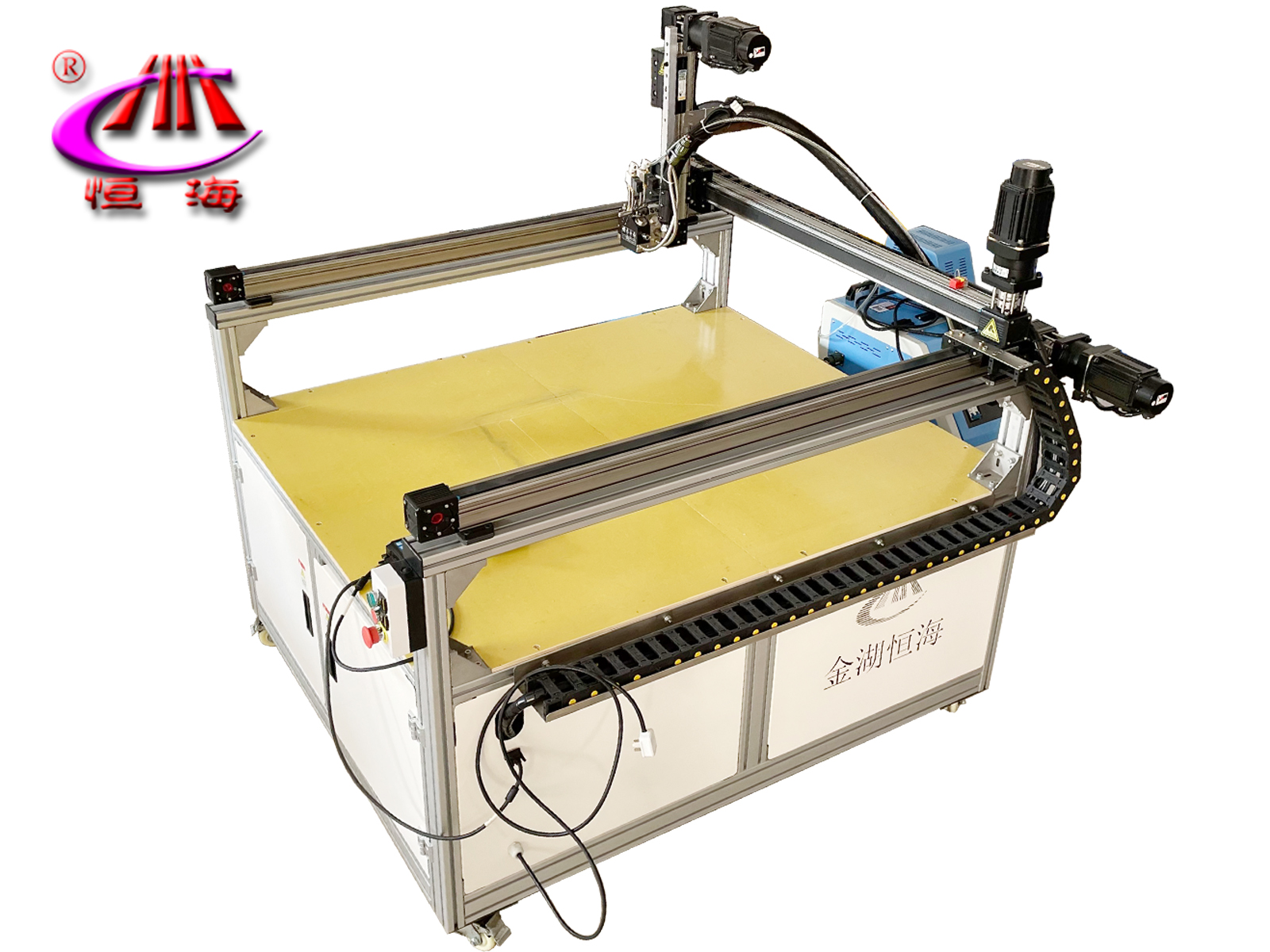

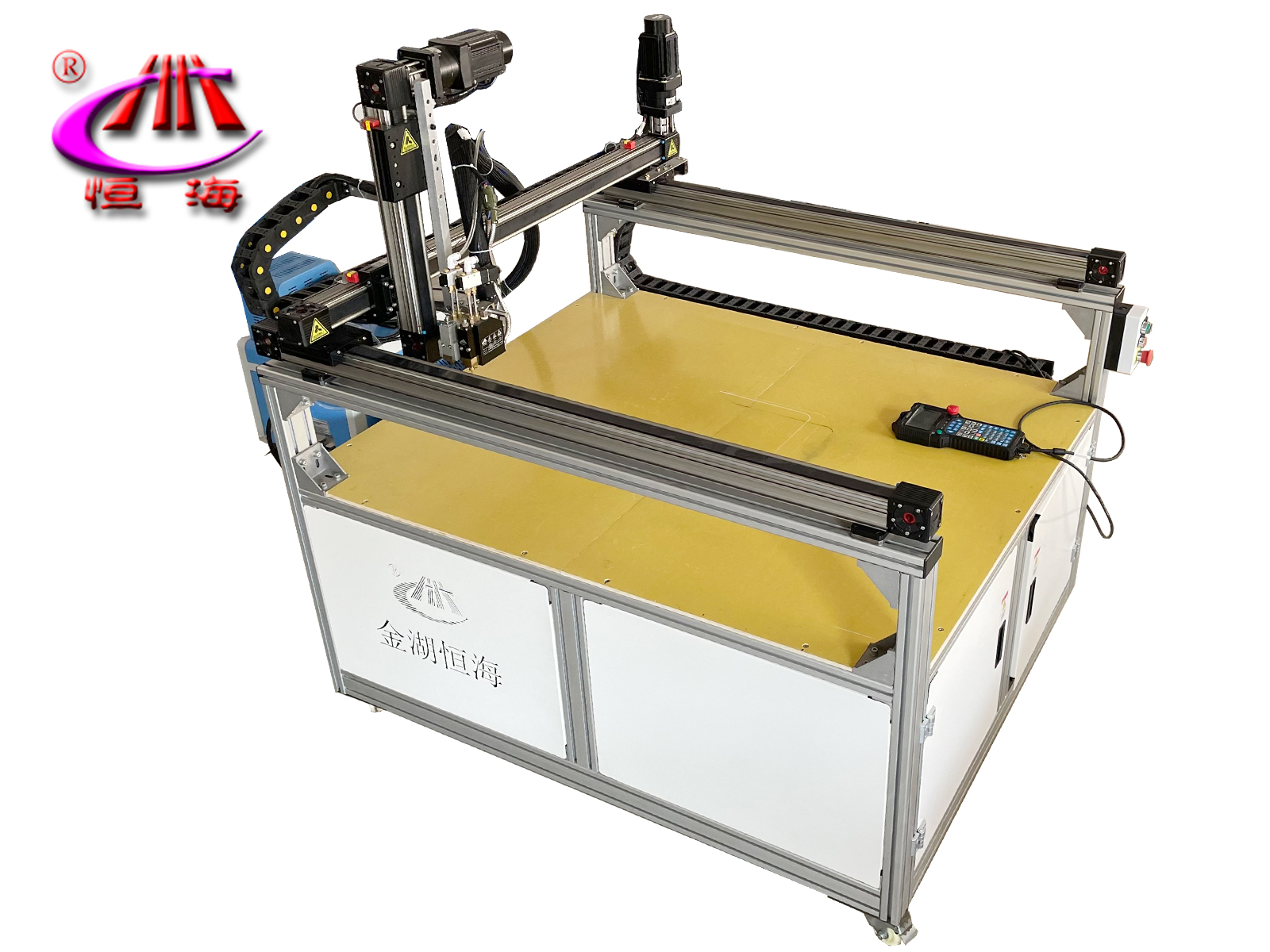

Automatic three-axis dispensing machine

Detailed information

Brand: Henghai

Name: Automatic three-axis dispensing machine

Model: AKS-SZ0912-SF

Maximum moving speed: 300mm / S

Repeat positioning accuracy: 0.03mm

Effective stroke: X-axis 900mm, Y-axis 1200mm, z-axis 200mm

Rated power: 2300W

Rated voltage: 220VAC

Rated current: 10.9A

Overall weight: 105kg

Overall dimension: 1500x1270x1620 (L x W x H)

Detailed description

1. Aluminum alloy frame structure is adopted, which is clean, sanitary, convenient for installation, free of rust and paint.

2. Drag chain trunking wiring is easy to fold and repair, and meets the industrial design safety standards.

3. The three axes are driven by servo motor and closed-loop control to ensure accuracy.

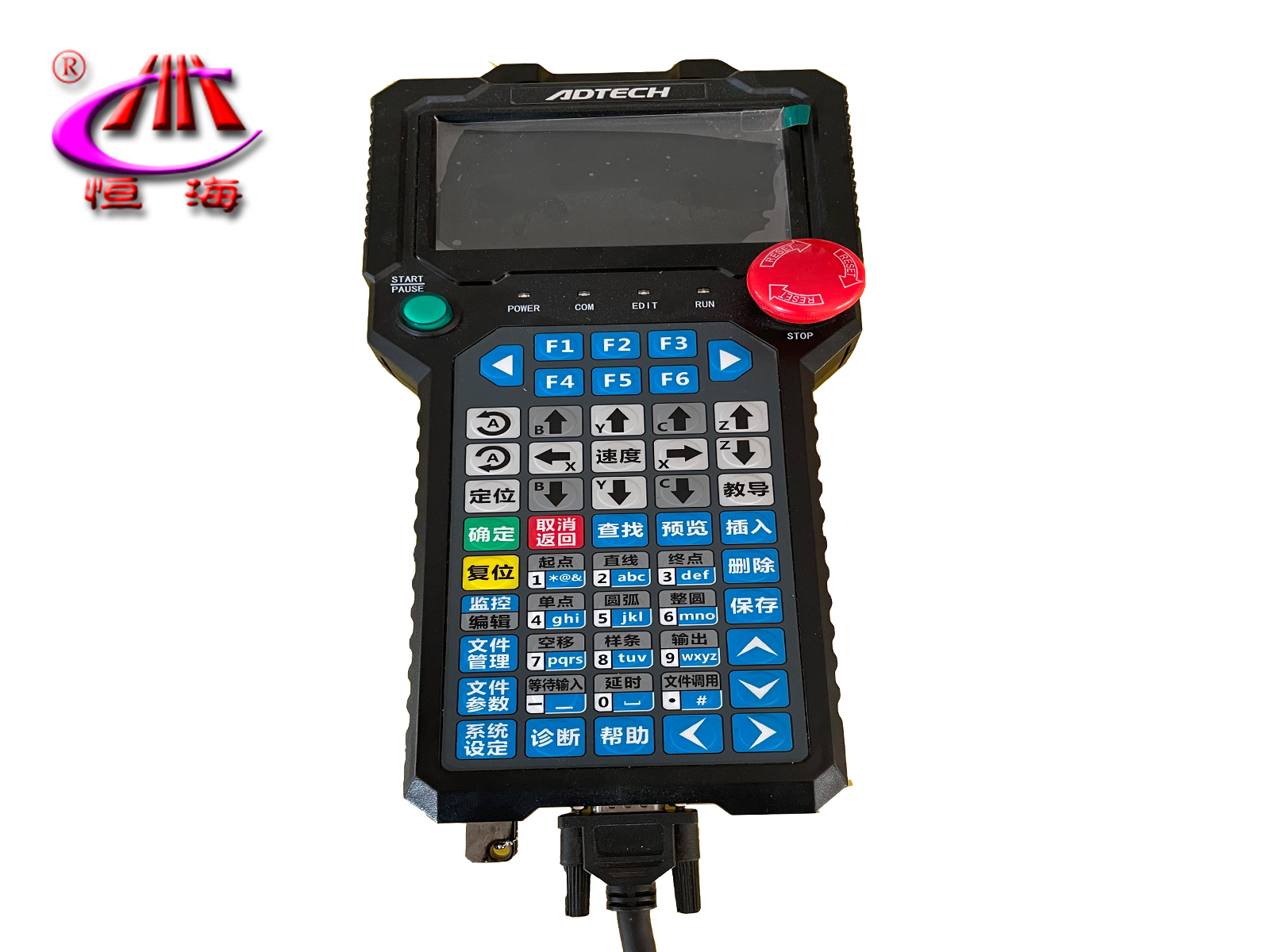

4. Programmable control system, which can be input manually and import complex graphics into USB flash disk. The system adopts three-axis difference compensation algorithm to ensure fine and accurate graphics.

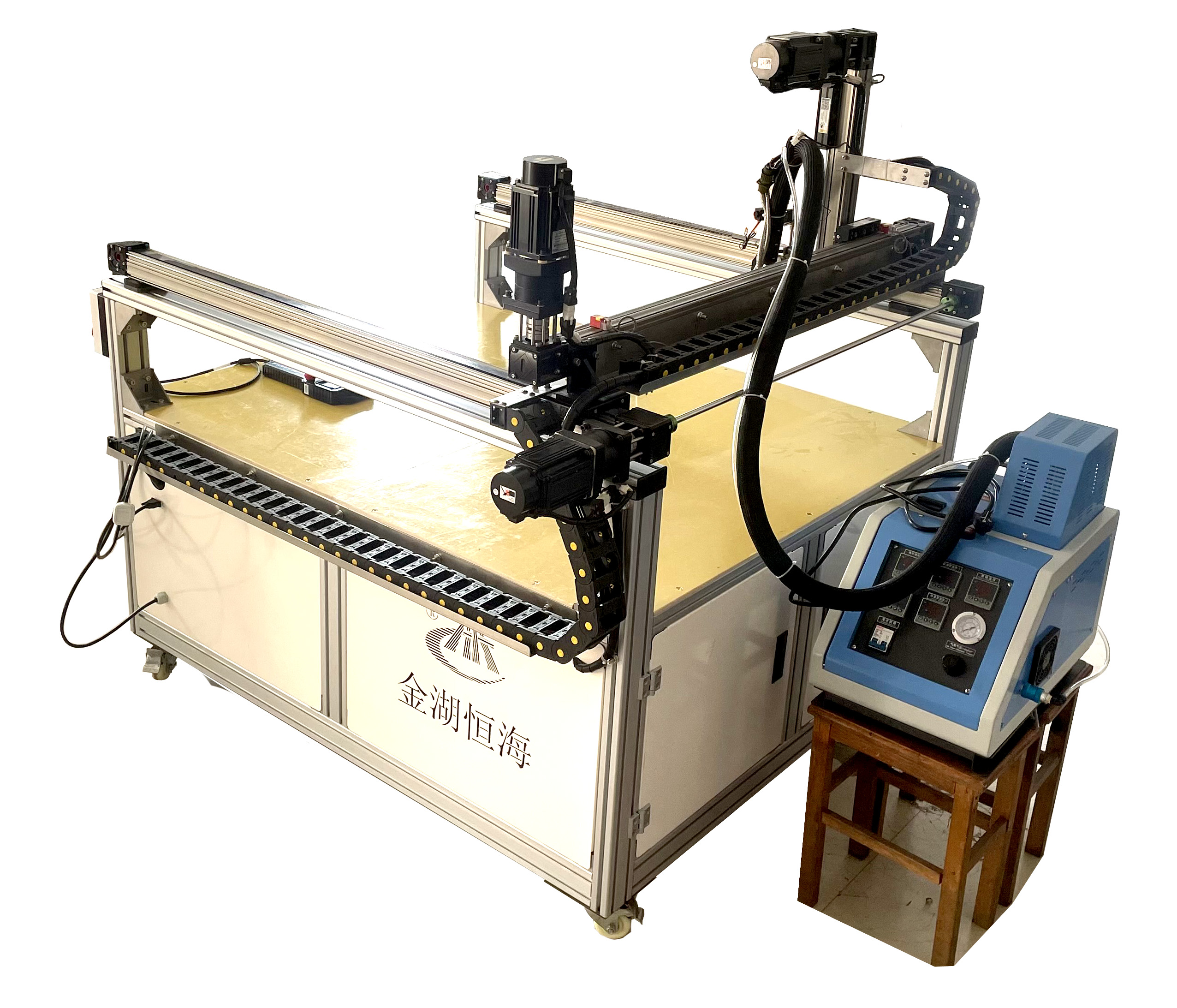

5. It can be externally connected with hot melt adhesive machine and other additional components to meet the process requirements of different industries.

6. Equipped with three-axis travel sensor to effectively prevent over range collision and ensure equipment safety.

Matters needing attention

1. High voltage equipment, pay attention to leakage and avoid electric shock.

2. The equipment can be started only after confirming the safe height of the flat object on the workbench.

3. Power off during installation.

4. When installing auxiliary equipment such as guns and pipes, the pressure shall be relieved and discharged before installation.

5. Clean the dust regularly to prevent static ignition.

6. Regularly check whether there is liquid leakage and electric leakage.

Purchase need to know

1. About products

      We accept the customized service of special models of users and track the whole process from production to delivery to ensure the safety and stability of the equipment.

2. About after sales

We will provide perfect after-sales service, from manufacturing, delivery, installation, commissioning to delivery to users.

3. About delivery

The express companies we cooperate with are: Shentong, Yuantong, Shunfeng, and logistics companies.
