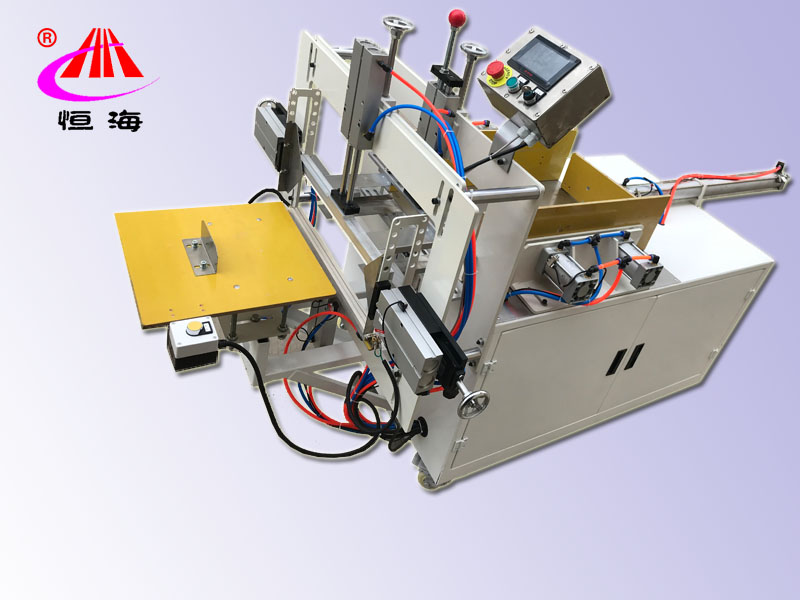

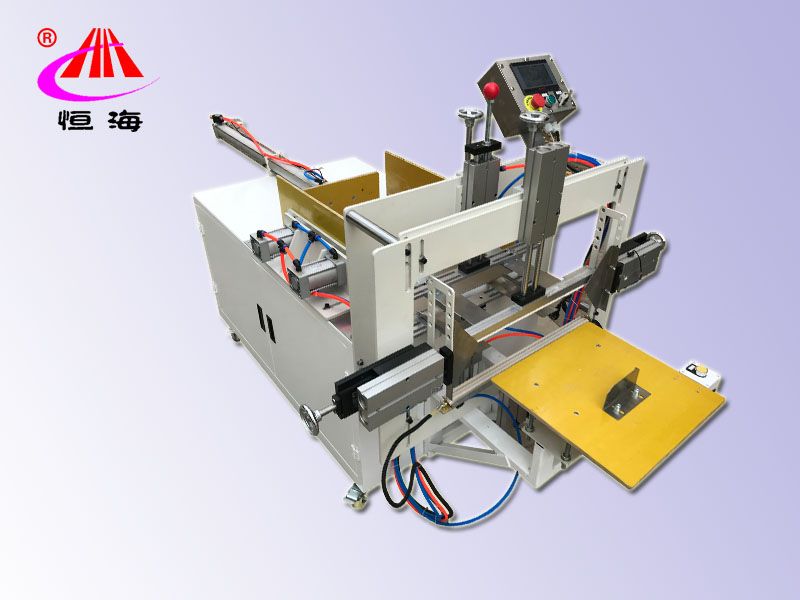

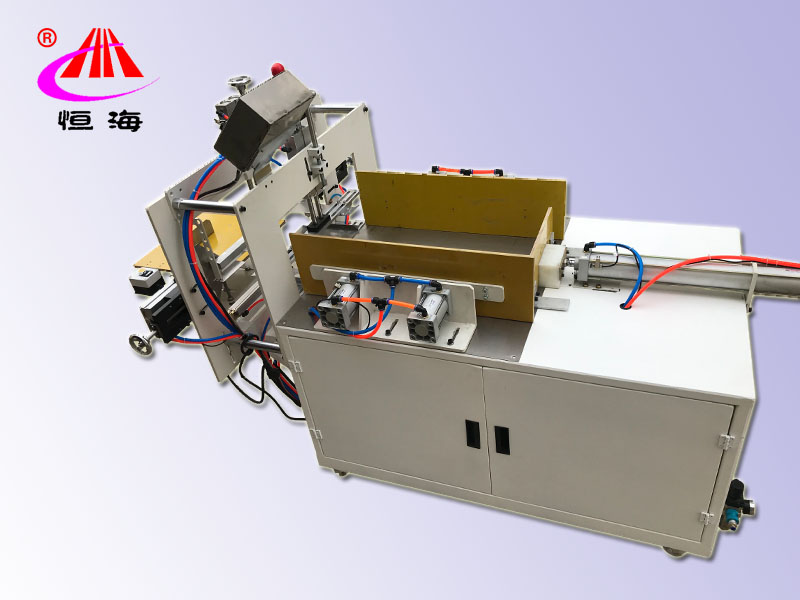

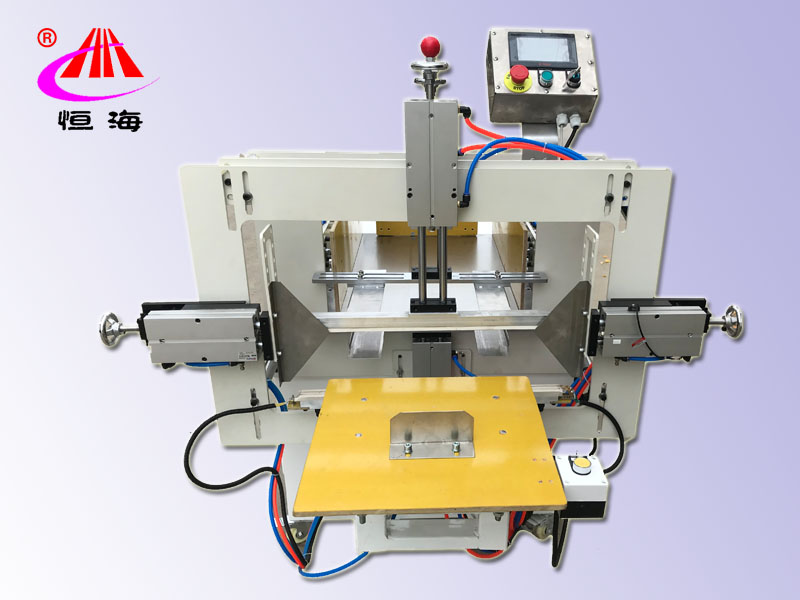

Single head diaper packing machine

(Due to the different products packed, the real machine will be different from the machine part in the picture.)

Functions & features

1. Adopting the advanced PLC computer programming control, double frequency

conversions control and the touch screen to display parameters, it is very easy

to set the machine. Moreover, the temperature controlling is more precise so that

heating wires and tapes with thermo stability can be protected more efficiently.

2. Packing and sealing are pretty and tidy.

3. Geschwindigkeit des Packets : one labour/greater than10 pack/min, depend on

   product variety and operator’s proficiency and experience.

4. Comprehensive design, rigid frame, and imported major component, allows our

machine to work steadily, efficiently, and long lasting too.

5. The screen automatically displays the performance parameters such as packaging

speed, quantity and failure reason.

6. Multiple specifications can be adjusted and used within the specified range of the same equipment

7. More stable operation with self-lubricating system

Application

Applicable for packing diaper & Nursing pad

Principal capability and technical feature:

Model:  AKS-LK/HLD-BZ-B1

Packing speed :  one labour/greater than10 pack/min

Power source : 220 V，50 HZ

Air pressure: 0. 6MPA

Power : 0.4 KW

Overall weight: 260KG

Noise :≤ 50dB

Packing size:

Long: 100-500mm

Wide: 160-400mm

High: 50-260mm

(special specification can be customized)
