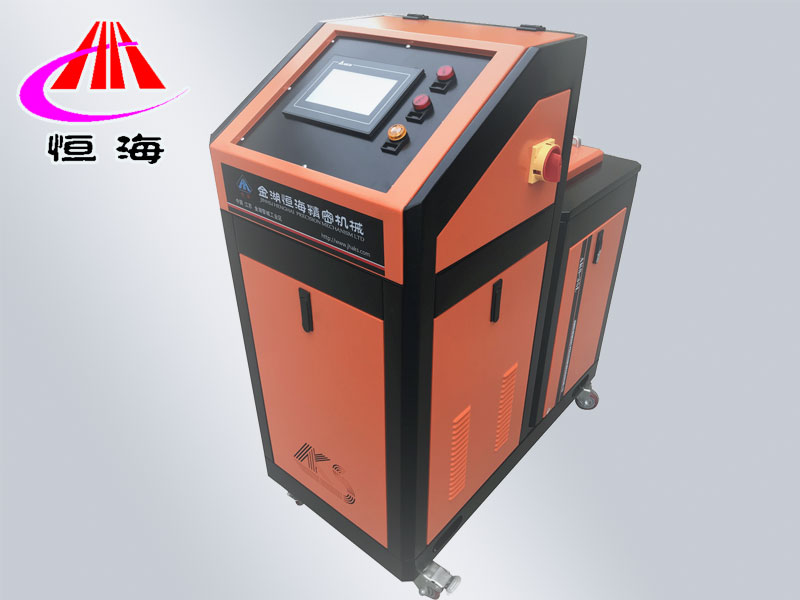

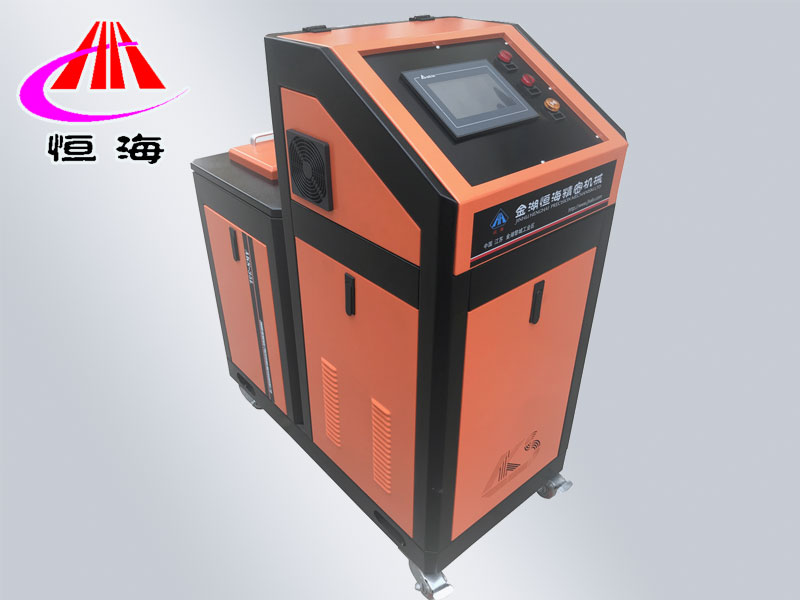

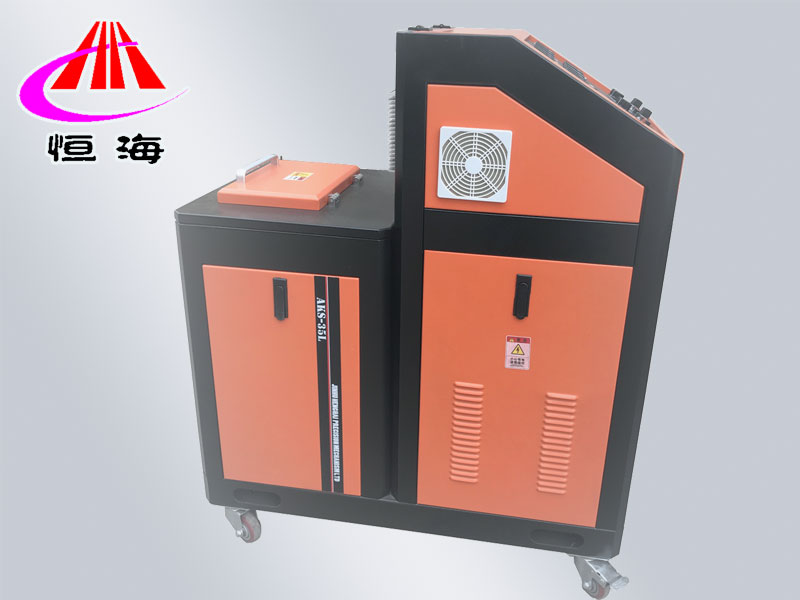

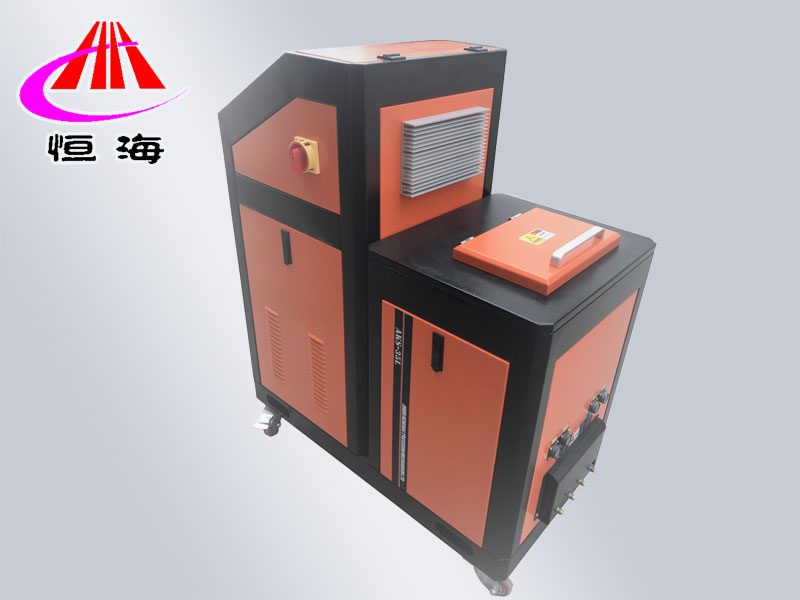

35L hot melt adhesive machine

Detailed information

Brand: Henghai

Name: 35kg hot melt adhesive machine

Model: AKS-35-2P4E-B

Temperature control range: 0-200 ℃

Operating temperature: 165 ℃

Rated power: 3500W + 1200W

Rated voltage: 380VAC/220VAC

Rated current: 15.9A + 5.5A

Overall weight: 75.8Kg

Overall dimension: 950x510x1150 (L x W x H)



Detailed description

① Pre melting type heating melting cylinder, "TEFLON" coating to reduce carbide production.

② The grooved self buckle shell is easy to fold, install and maintain, and meets the industrial design safety standard.

③ Glue amount up to 12kg / HR, power: 3500W

④ The digital PID temperature controller cooperates with the K / PT100 temperature sensor to accurately control the temperature to prevent the deterioration and yellowing of hot melt adhesive and the precipitation of silicone oil.

⑤ Equipped with a set of durable single / double-layer gear pumps, accurate glue delivery.

⑤ 1 / 2 groups of return valves and 5 groups of over temperature protection circuits are provided to ensure safety.

⑥ Durable single / double-layer gear pump, accurate output of glue, accurate metering gear pump, accurate output of 0.75-15cc per revolution, optional.



Matters needing attention

① For high temperature and high pressure equipment, pay attention to prevent scalding and electric shock.

② After the temperature is ready, the equipment can be started.

③ Power off operation shall be conducted during installation.

④ When installing auxiliary equipment such as guns and pipes, the pressure shall be relieved and discharged before installation.

⑤ Clean the dust regularly to prevent static ignition.

⑥ Regularly check whether there is glue leakage and electric leakage.



Scope of application

Application fields: paper packaging, box sealing, automobile manufacturing, electronic and electrical packaging, trademark labeling, composite materials, maternal and child health products, medical mattresses, etc
