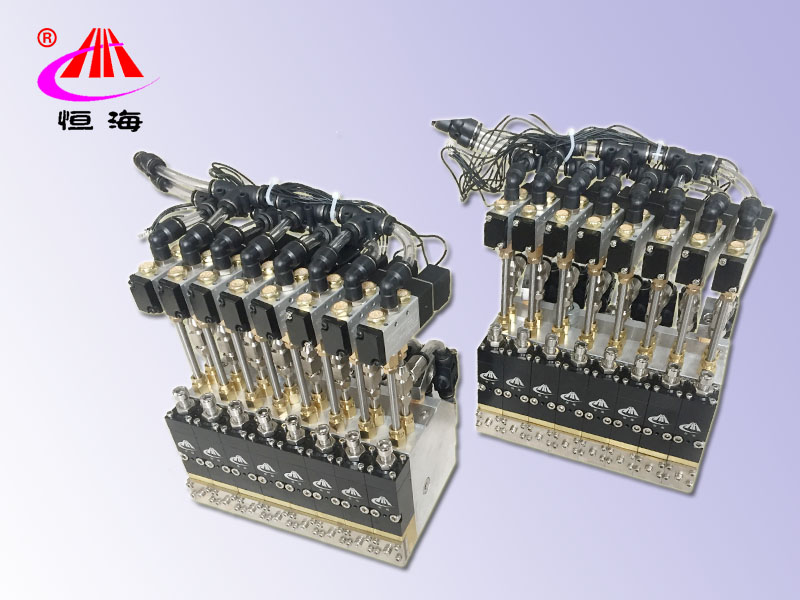

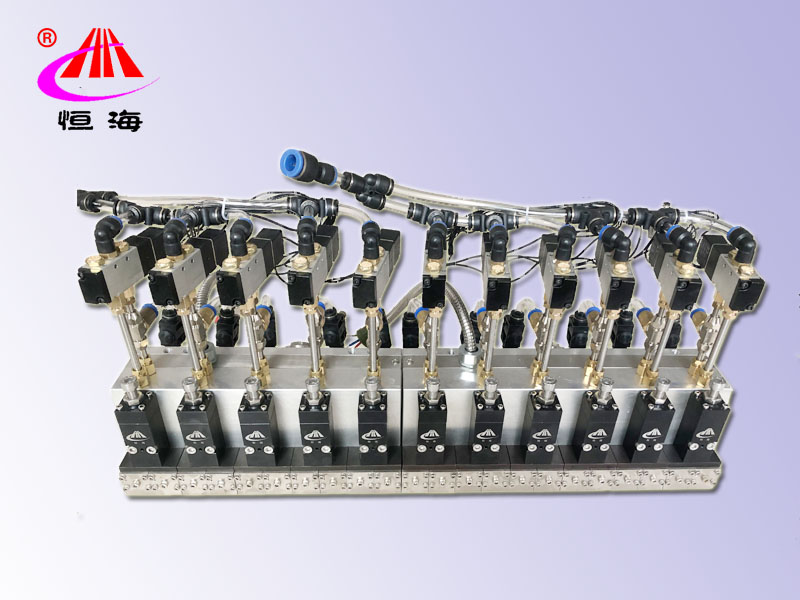

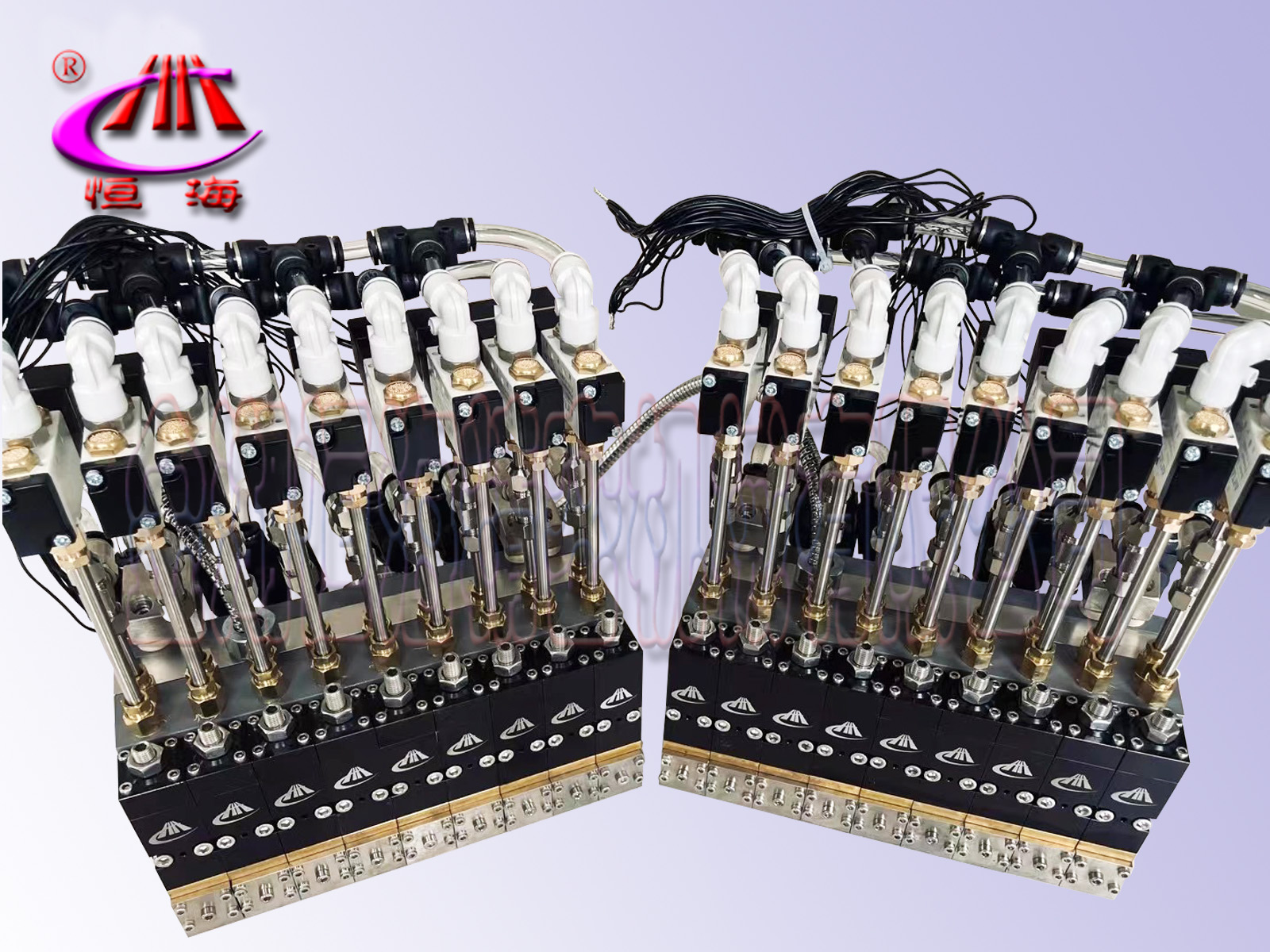

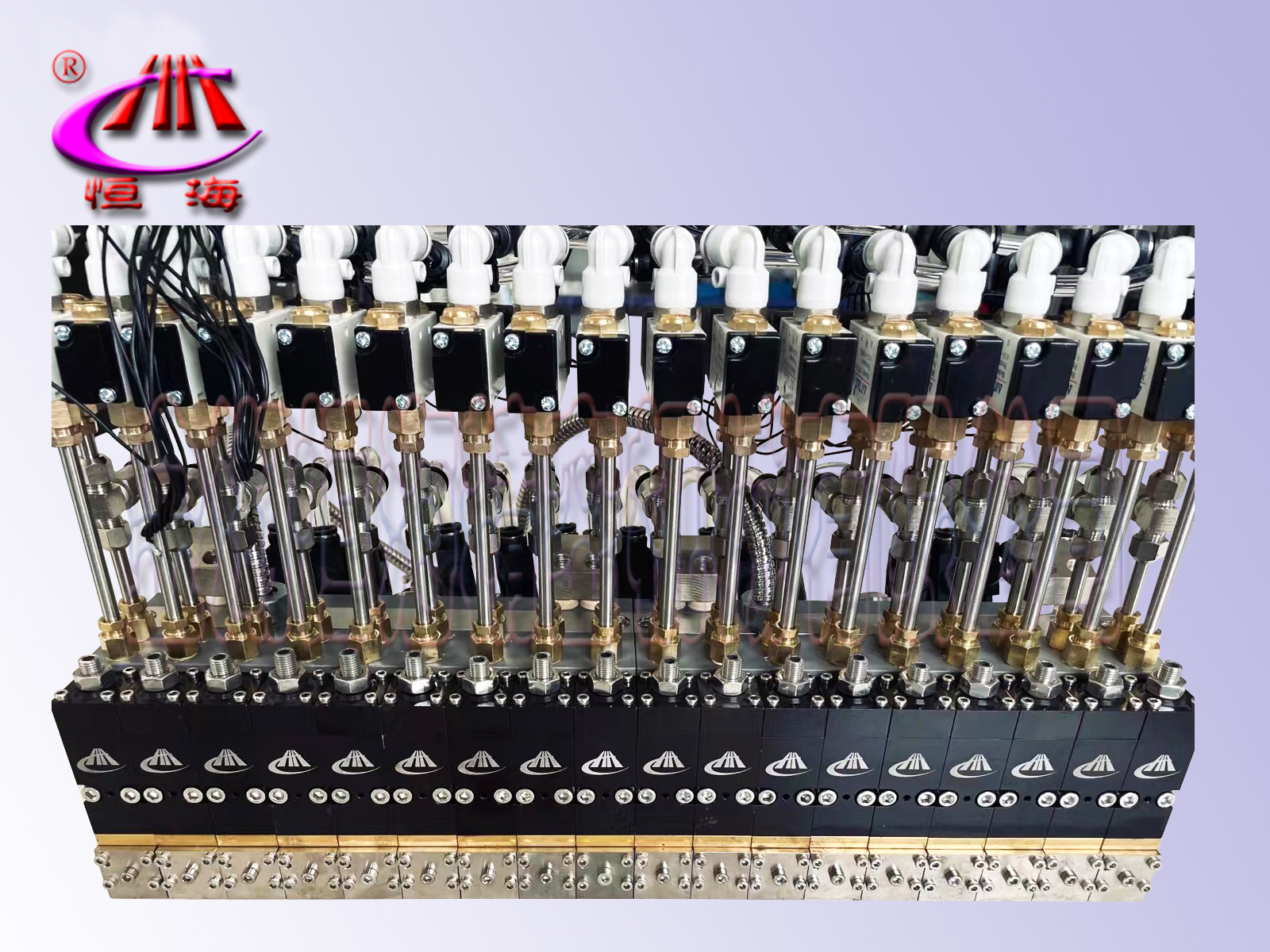

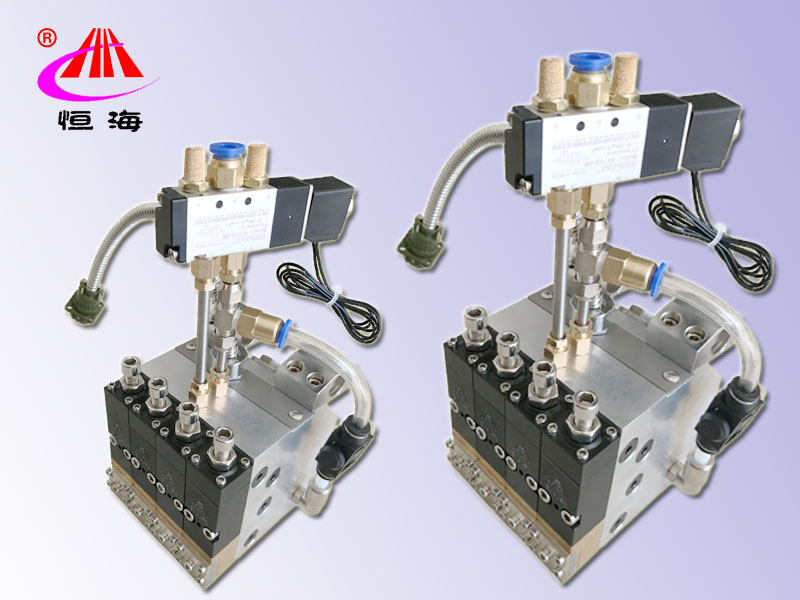

Modular multifunctional spray gun



Detailed information
Brand: alcos
Name: modular multi-functional fiber spray gun
Model: AKS-375MK
Temperature control range: 0-200 ℃
Working temperature: 165 ℃
Rated power: 2400W
Rated voltage: 220VAC
Rated current: 10.9A
Weight: 14.8kg
External dimension: 375x160x240 (L x W x H)
Detailed description
Unique modular design, easy to maintain.
Different width can be adjusted according to the production demand of customers.
Unique nozzle design and processing technology, 11 pieces of spray design.
The third air filtration and glue filtration at the nozzle are more likely to block the nozzle.
Active gas on and off, sensitive response speed.
Excellent control of the sizing width, reduce the waste and downtime caused by the belt splashing.
It can save more than 30% glue than ordinary spiral spray gun.
Use less glue for better adhesion
Matters needing attention
① high temperature and high pressure equipment, pay attention to anti scalding;
② the equipment can be started only after the temperature is ready;
③ power off operation is required during installation;
④ when installing auxiliary equipment such as gun and pipe, the pressure shall be released and discharged before installation;
⑤ clean the dust regularly to prevent static electricity from igniting;
⑥ regularly check whether there is leakage of glue and electricity.
Application scope
Application fields: paper packaging, box sealing, automobile manufacturing, electronic and electrical packaging, trademark labeling, material compounding, maternal and child health products, medical mattress, etc
