Product display

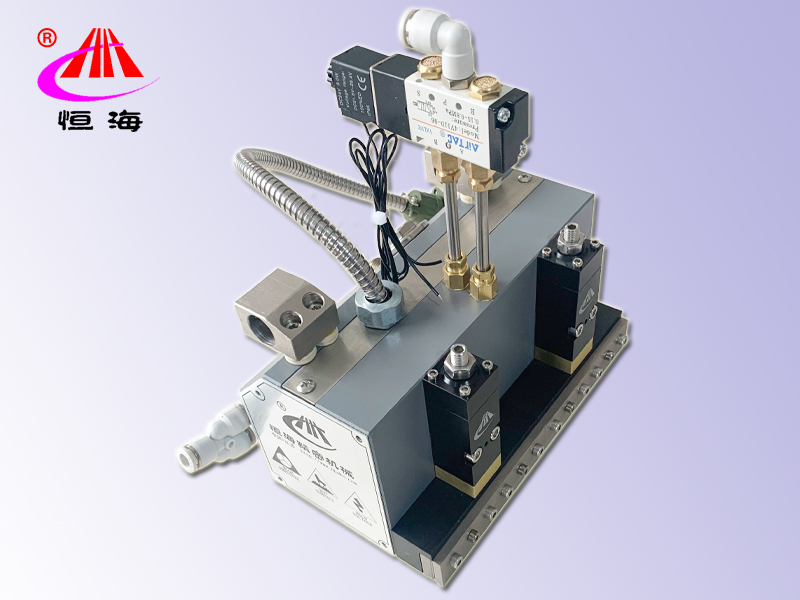

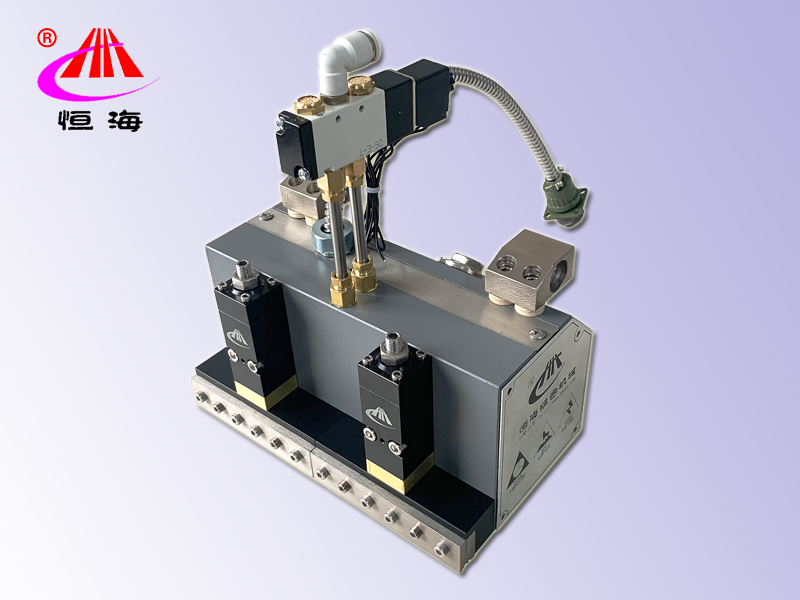

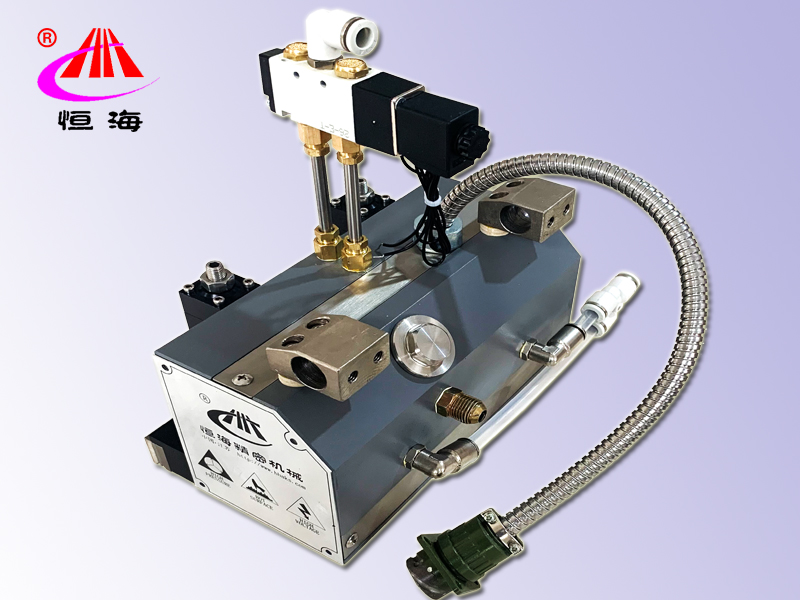

200mm Fiber spray glue gun
Detailed information
Brand: Henghai
Name: 200mm Fiber spray glue gun
Model: AKS-200QW-B2-K
Temperature control range: 0-200 ℃
Operating temperature: 165 ℃
Rated power: 1530W
Rated voltage: 220VAC
Rated current: 7A
Weight: 5.5kg
Overall dimension: 200x105x240 (L x W x H)
Detailed description
①Unique gas on and off design, the operation frequency can be as high as 1000 times / min.
②It is designed by melt blown technology applied in non-woven fabric industry, with 50% glue consumption of spiral glue spraying under the same composite strength.
③Capable of medium and low speed glue breaking or continuous glue spraying. The glue spraying is fibrous, fine, strong adhesion and uniform distribution.
④The high-strength wear-resistant stainless steel nozzle has strong durability and adopts multi-layer filtration technology to prevent blockage to the greatest extent.
⑤The spraying width is 25mm-2000mm, and the edge is controlled within ± 1.omm; Other spray width can be customized as required.
⑥It can be refitted and applied to all brands of hot melt adhesive machines in the world according to user needs.
Matters needing attention
①High temperature and high pressure equipment, pay attention to anti scalding;
② The equipment can be started only after the temperature is ready;
③Power off operation shall be conducted during installation;
④When installing auxiliary equipment such as gun and pipe, the pressure shall be relieved and discharged before installation;
⑤Clean the dust regularly to prevent static ignition;
⑥ Regularly check whether there is glue leakage and electric leakage.
Scope of application
Application fields: paper packaging, box sealing, automobile manufacturing, electronic and electrical packaging, trademark labeling, composite materials, maternal and child health products, medical mattresses, etc
For more details, please visit Henghai's official WEB : http://www.hhaks.com
